Keithley

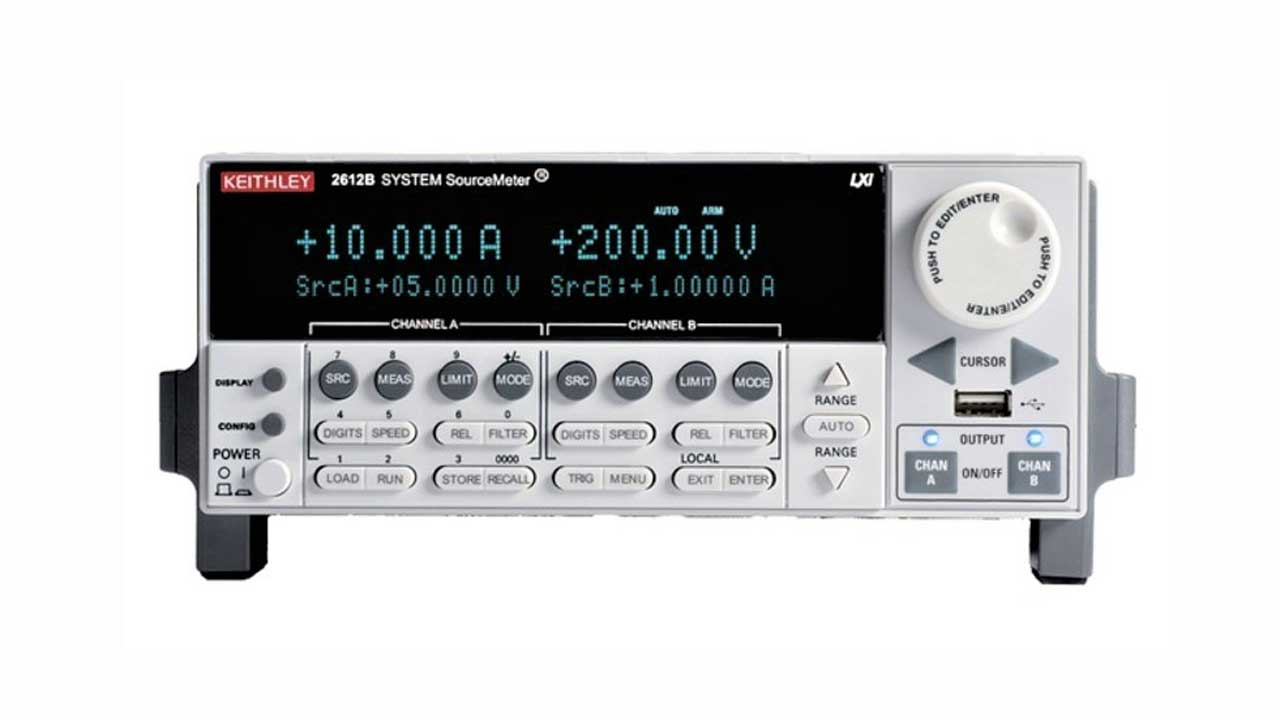

2612B SourceMeter
2612B SourceMeter
定價
$0.00
定價
售價
$0.00
單價
/
每
Key facts
The Keithley 2612B SourceMeter lets you make precision DC, pulse, and low frequency AC source-measure tests faster, easier, and more economically than before. The Keithley 2612B offers two to four times the test speed of competitive products for I-V functional testing by combining:
- Keithley’s high speed, third-generation Source-Measure Unit (SMU) design
- An embedded Test Script Processor (TSP™)
- TSP-Link™, a fast triggering and inter-unit communication bus
The Keithley 2612B has a single 200W, 10A channel and is electrically isolated to ensure high measurement integrity and wiring flexibility. The Keithley 2612B SMU packs many instruments into a small package, including:
- A precision power supply
- A true current source
- A 6 1/2 digit multimeter
- A voltage or current pulse generator with measurement
- A low frequency arbitrary waveform generator
- An electronic load
- A trigger controller
Features and Specifications of the Keithley 2612B SourceMeter include:
- Channels: 2
- Max Current Source/Measure Range: 10A
- Max Voltage Source/Measure Range: 200V
- Measurement Resolution Current/Voltage: 100fA / 100nV
- Power: 200W
